Picoplis® / Picoplis®Maxi

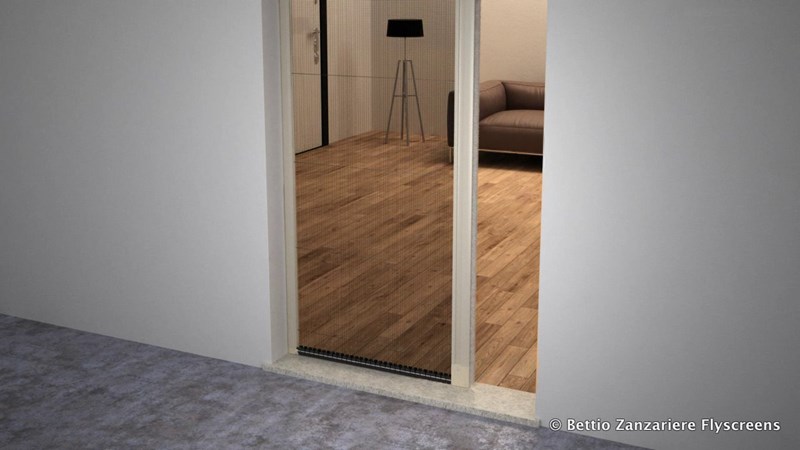

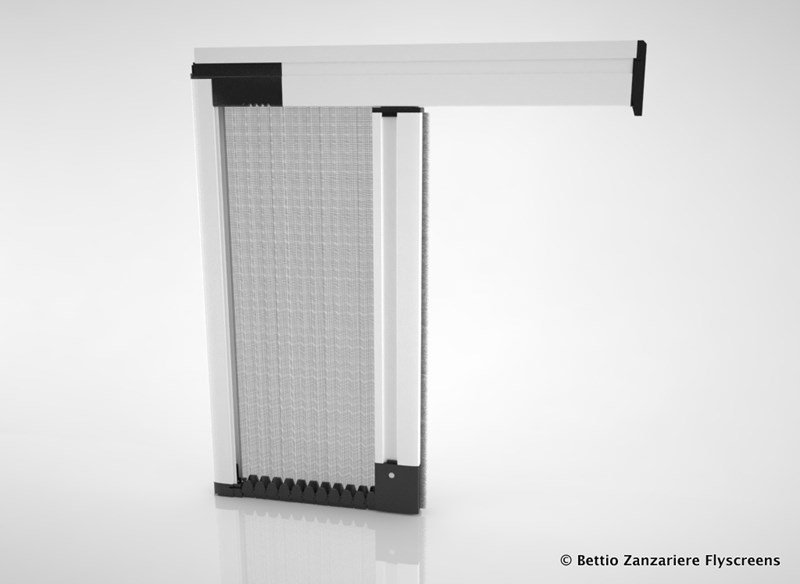

Picoplis® combines the elegance of the pleated mesh with the technical innovation and convenience of the Scenica® family, further enhanced by simple assembly and quick and practical installation.

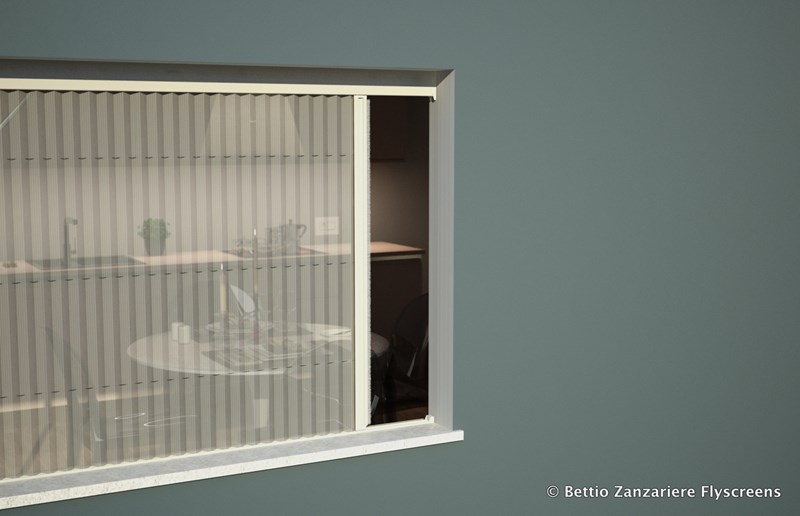

  • Ideal for large openings
  • Ultra quick installation
  • Stops at all positions
  • Innovative installation system without screws (with double-tape)

MOVEMENT:

Lateral sliding; Scenica®;

INSTALLATION:

Recessed;

BOX:

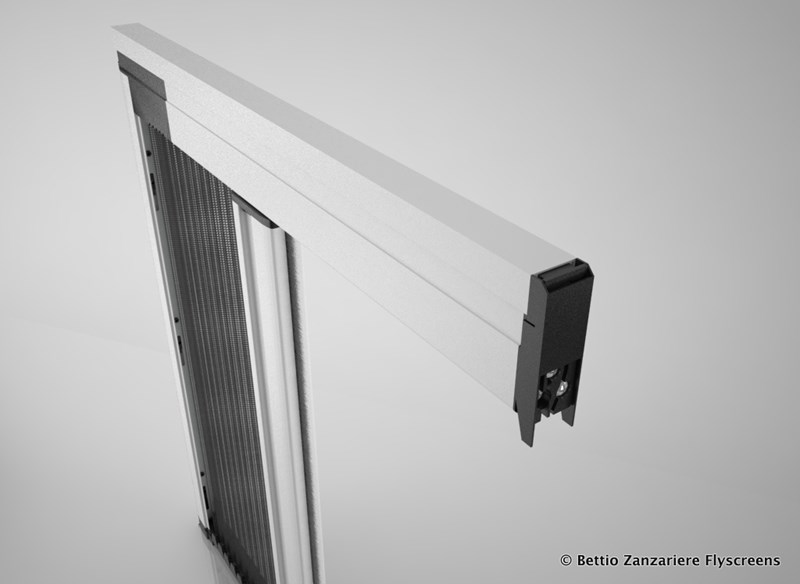

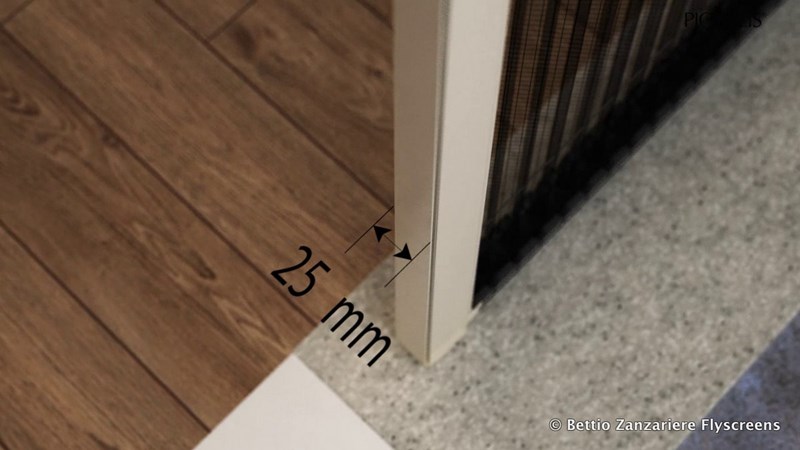

Box 25 mm

TOTAL DIMENSIONS:

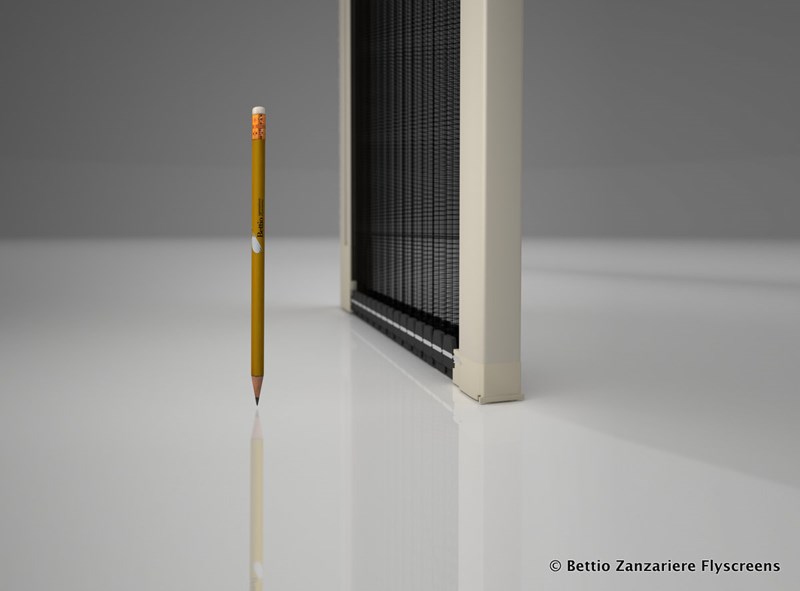

25 mm

WIND LOAD RESISTANCE WITH STANDARD MESH:

Pleated mesh;

AJUSTEMENTS:

Height adjustment: -3/+11 mm without double-sided tape; +14 mm with double-sided tape.
Width adjustment up to +10 mm.

OPENING:

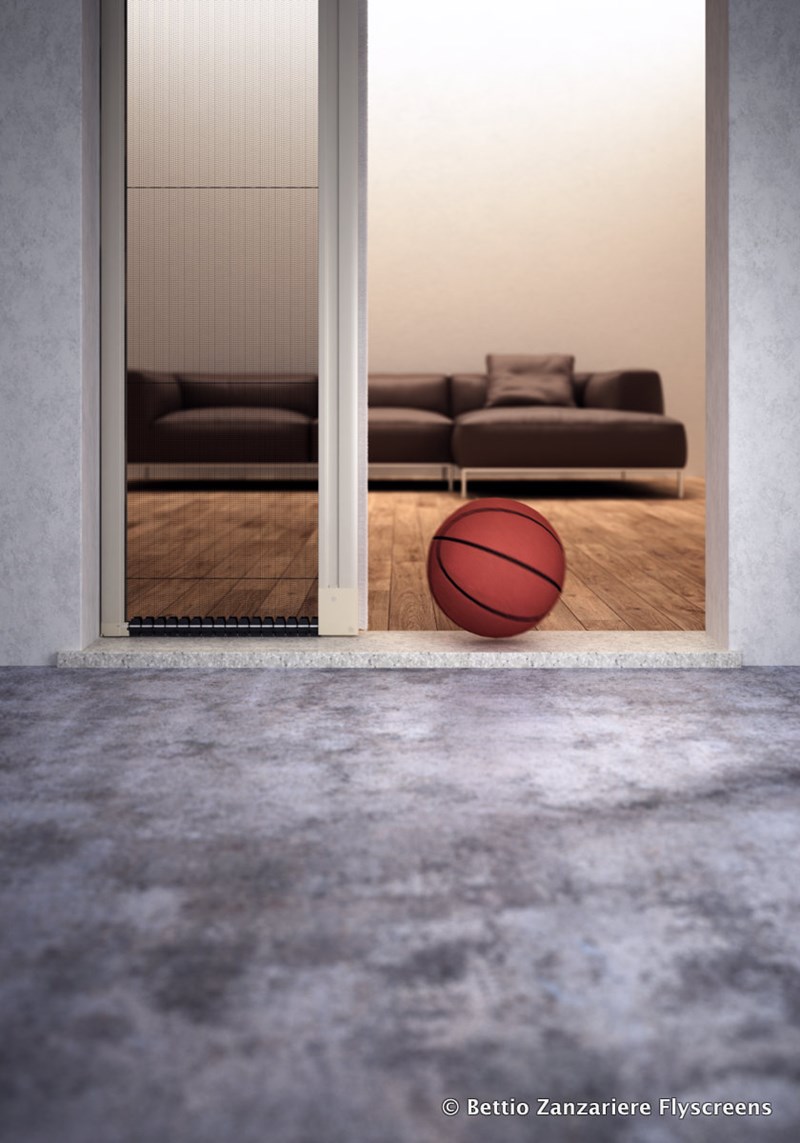

Doors;

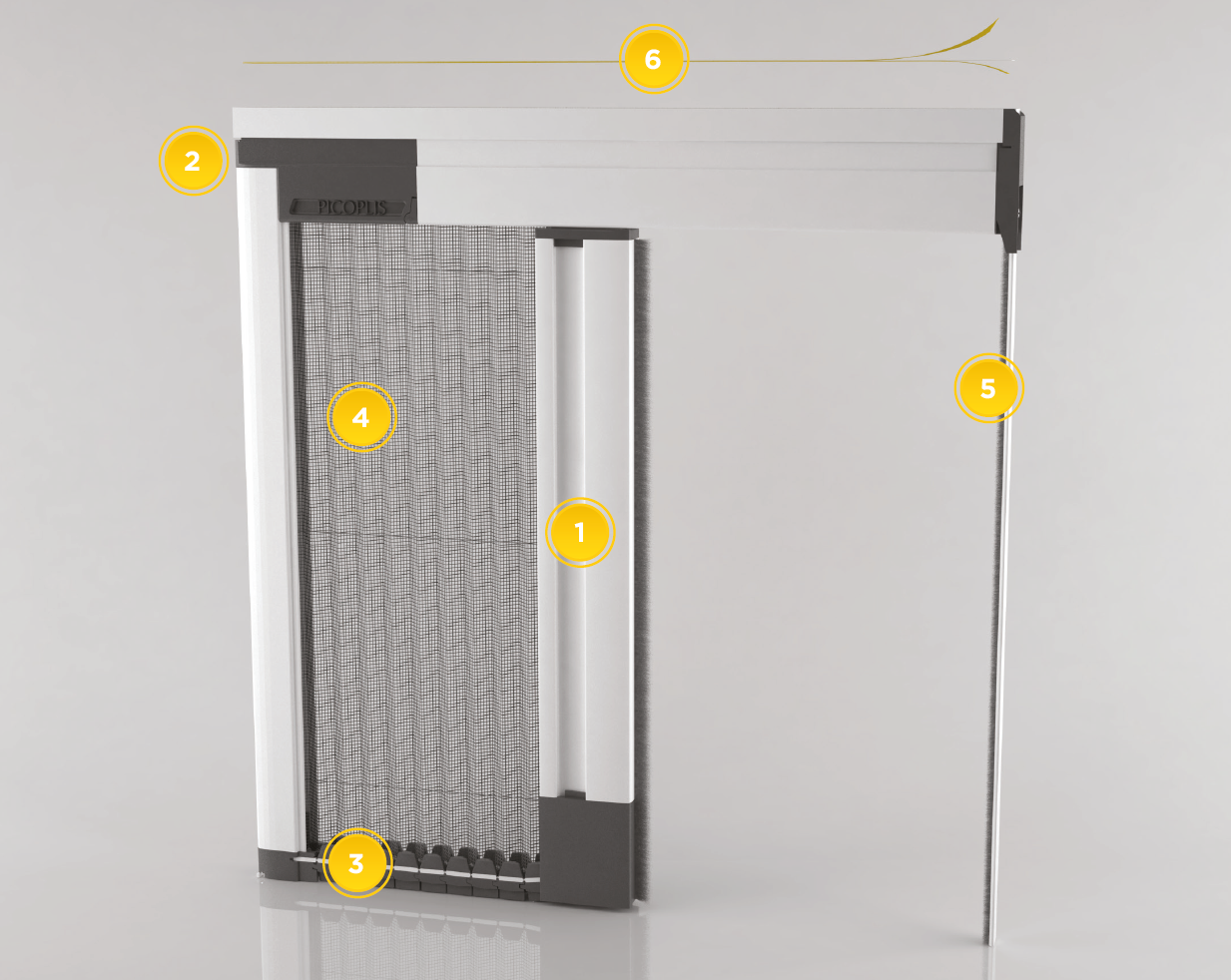

  1. STOPS AT ALL POSITIONS: Practical to use as the handle bar can be locked in any position.
  2. INSTALLATION ON SLIDING DOORS AND WINDOWS: An “adjuster end cap” makes the screen freestanding so it does not require any supporting surface behind the box.

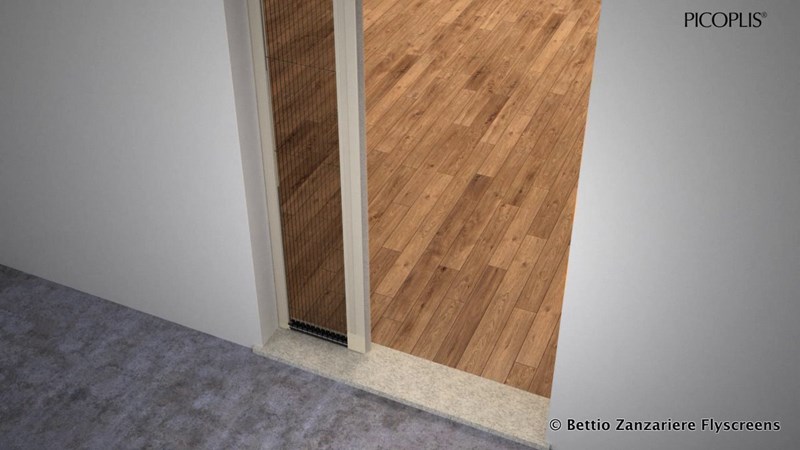

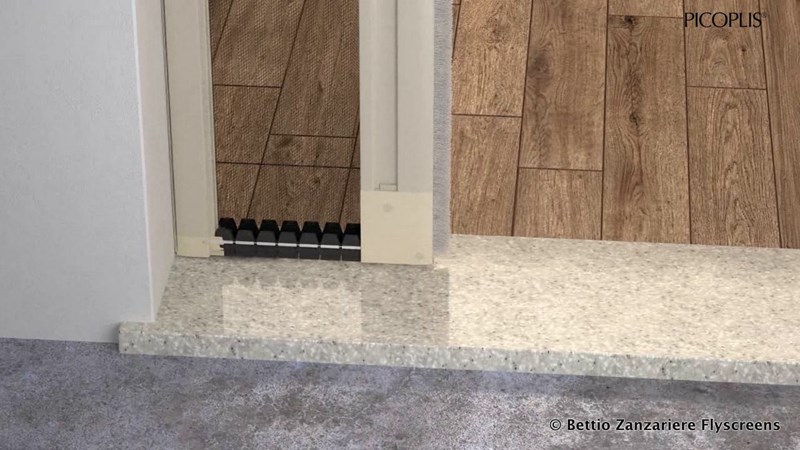

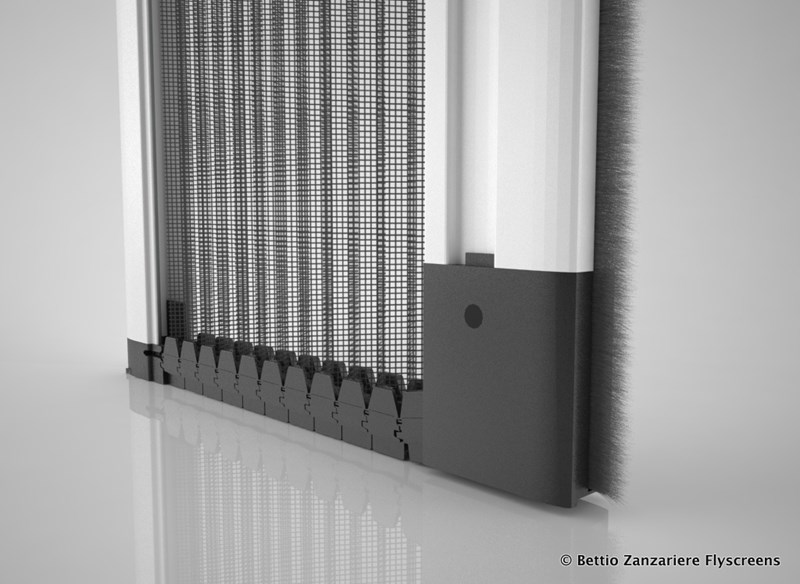

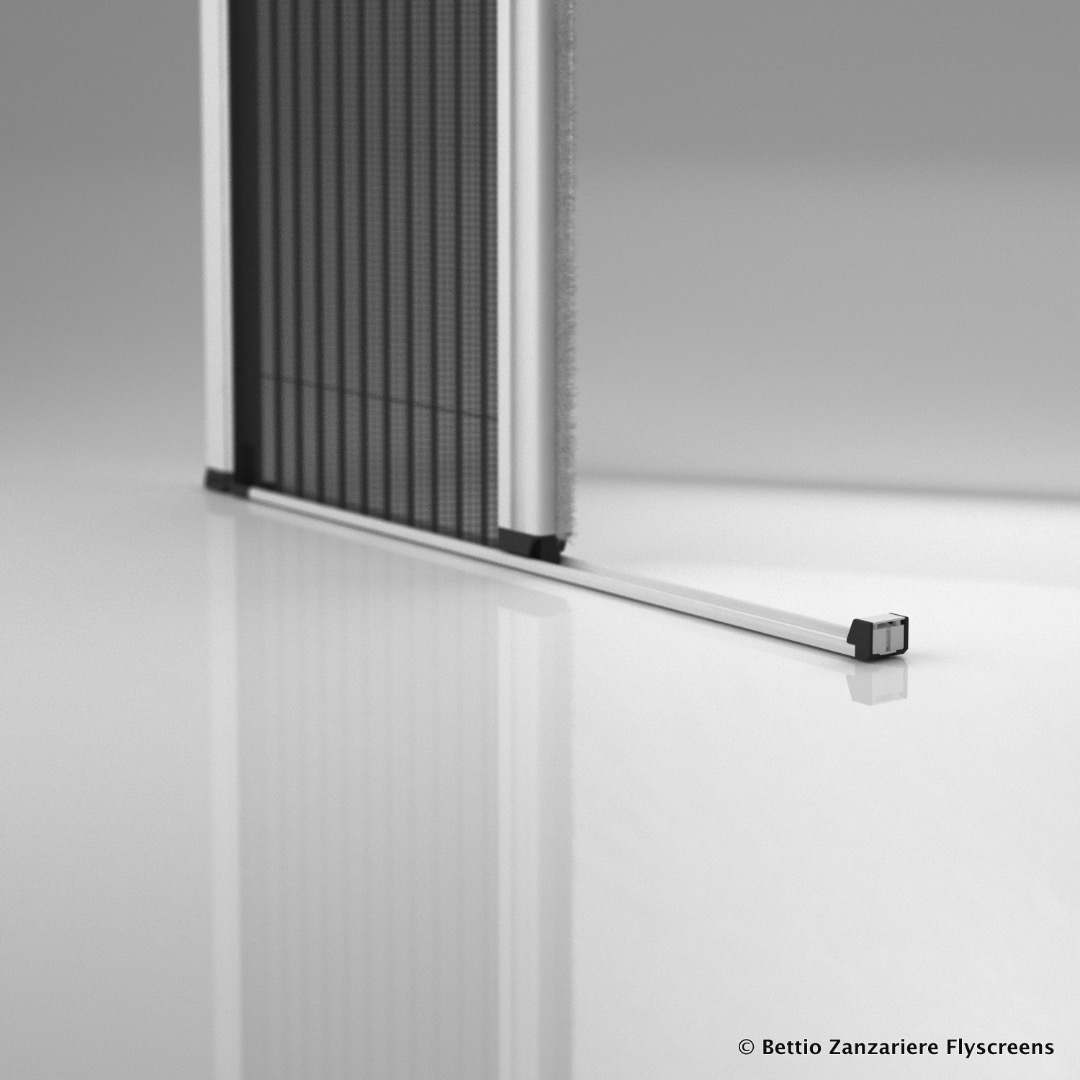

  3. VANISHING CHAIN TRACK: An innovative patent by Bettio allows the handle bar to release the chain track gradually.

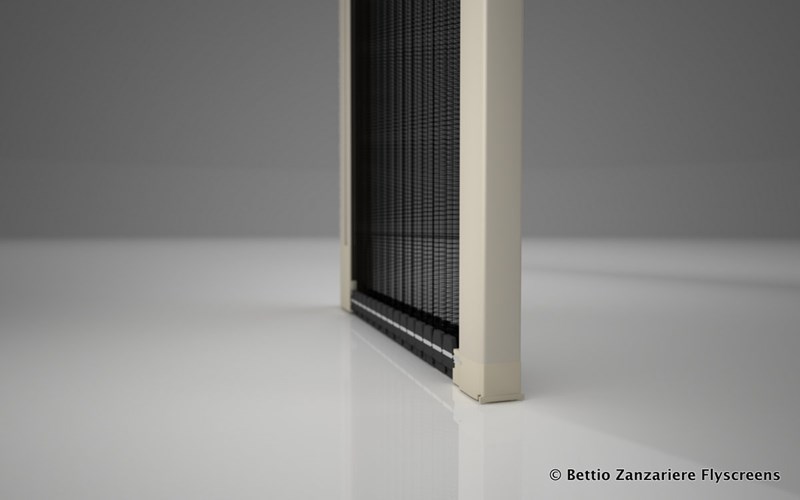

  4. GREY OR BLACK PLEATED MESH: This type of mesh offers the maximum aesthetic value while achieving high technical performance.
  5. SIDE PROFILE: A side profile can be installed on the single door version to rectify any out of squares.
  6. SCREW-FREE INSTALLATION: If the walls are suitable, it is possible to install the screen without using screws, thanks to a special double-sided adhesive tape.

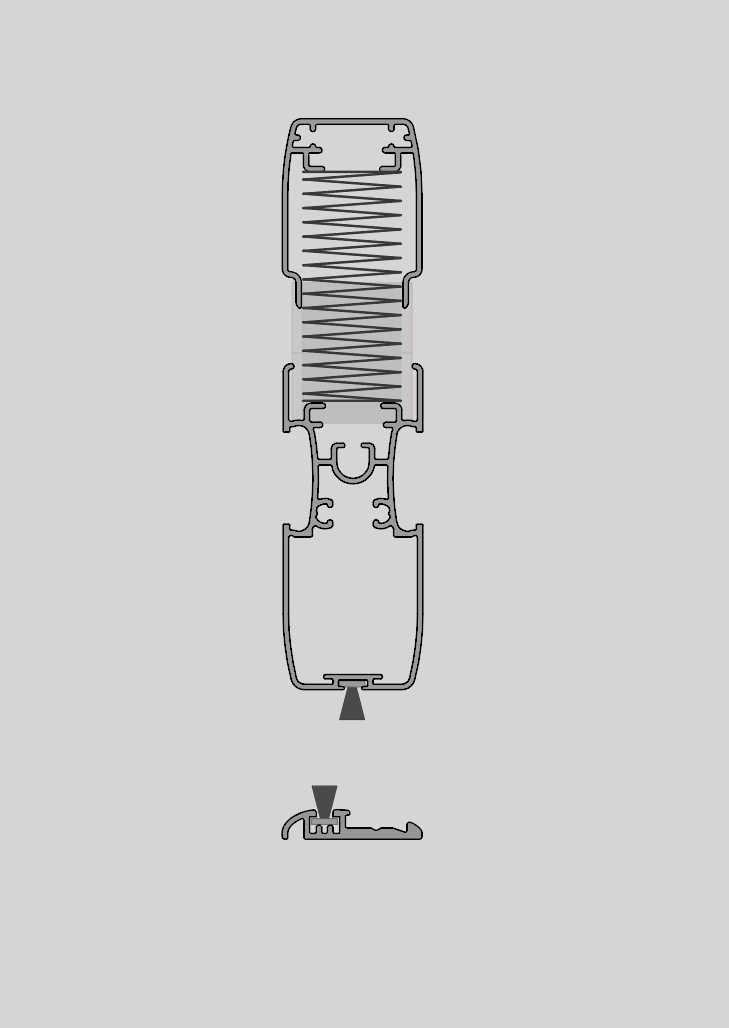

 PICOPLIS®

LEAVES MINIMUM SIZES (BXH) MAXIMUM SIZES (BXH)
1  285 x 200 mm  1800 X 3000 mm
2  570 x 200 mm  3600 x 3000 mm

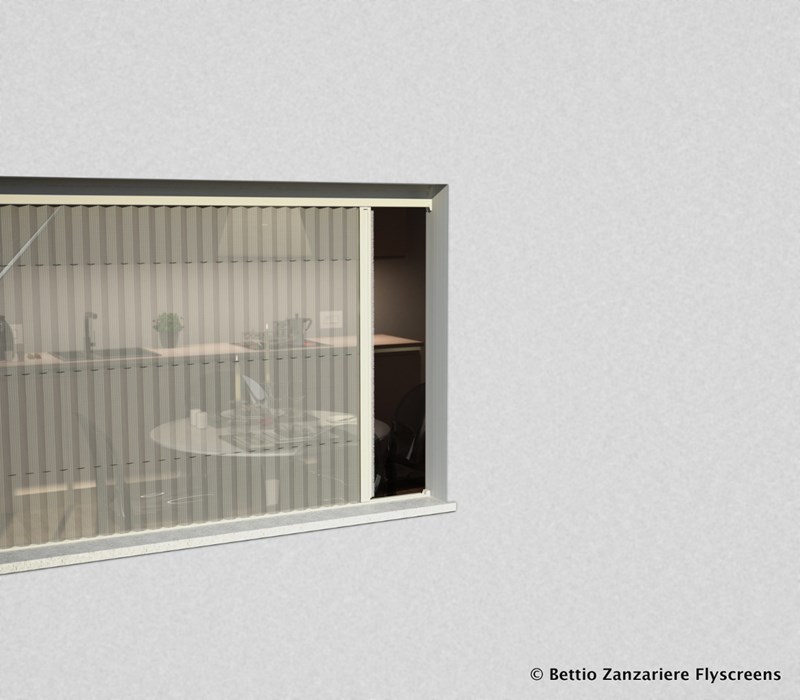

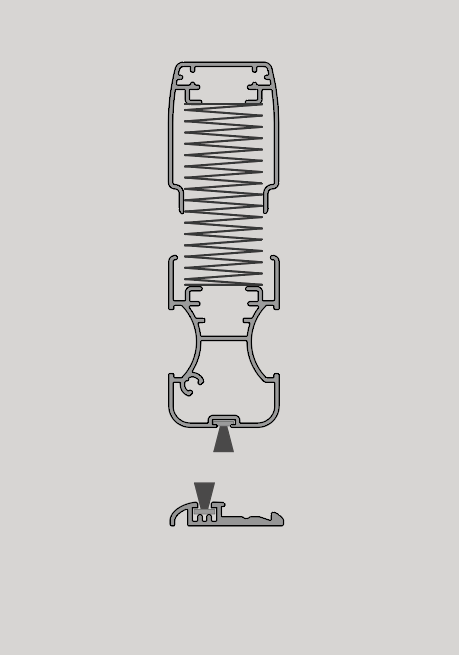

PICOPLIS® MAXI V1

LEAVES MINIMUM SIZES (BXH) MAXIMUM SIZES (BXH)
1  285 x 200 mm  1800 X 3000 mm
2  570 x 200 mm  3600 x 3000 mm

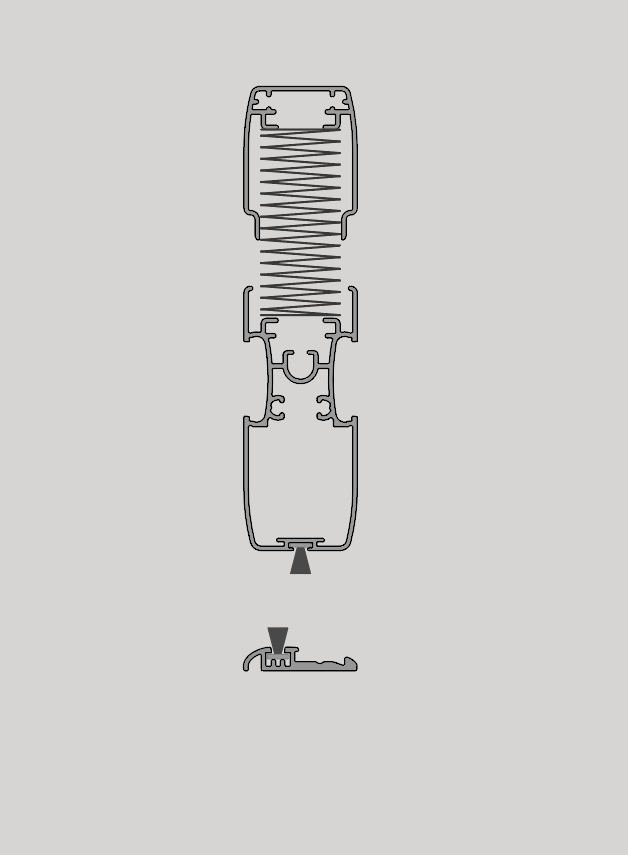

PICOPLIS® MAXI V2

LEAVES MINIMUM SIZES (BXH) MAXIMUM SIZES (BXH)
1  285 x 200 mm  2450 x 3000 mm
2  570 x 200 mm  4900 x 3000 mm

The height of Picoplis® must always be 8 cm taller than the basis of each leaf.

Ral 9010 Matt 34
Ral 9010 Gloss 4
Ral 9016 Matt 31
Ral 9016 Gloss 11
Ral 1013 Matt 37
Ral 1013 Gloss 7
Ral 9001 Matt 87
Ral 9001 Gloss 33
Brushed Silver 28
Silver Painted 55
Ral 7001 Matt 90
Ral 7016 Matt 95
Ral 8014 Matt 35
Grigio Michelangelo 14
Ral 9005 Matt 36
Bronze Painted 66
Testa di Moro 2001 Matt 9
Ral 8017 Matt 38
Marrone Michelangelo 15
Elox 2000 Matt 3
Ral 6005 Matt 40
Verde Michelangelo 16
Iroko 57
Douglas 58
Pino 59
Renolit Light 88
Ciliegio 20
Renolit Dark 89
Rovere 22
Noce 60
Acacia 21

Grey and white accessories.
