Mini
The screen with a 31 mm box and a high visibility mesh, suitable for even the most difficult openings.
- The maximum functionality in the smallest size
- Support spring to simplify installation
- Telescopic end caps as standard, for excellent adaptability
- Easily removable ground rail, to facilitate cleaning
- Compatible with the most advanced Bettio optionals: Clic-Clak® closure, anti-wind guide, handle
MOVEMENT:
Lateral sliding; Vertical sliding;
INSTALLATION:
Recessed;
COMMAND:
Spring operated;
BOX:
31 mm
- SUPPORT SPRING Facilitates installation by pushing outwards when compressed, thereby holding the box in place.

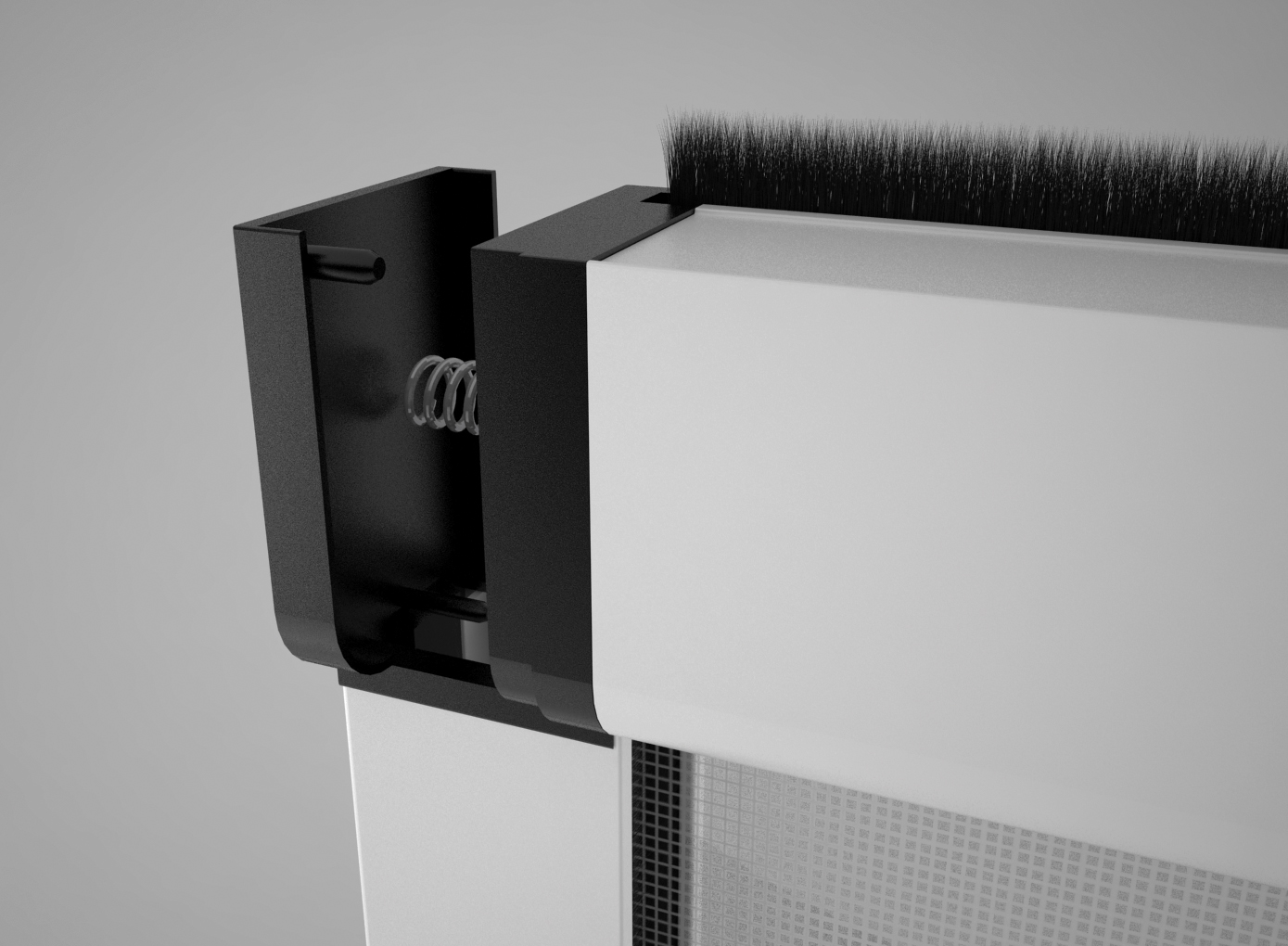

- MOBILE END CAP COVERS Special self-adjusting end cap covers, able to rectify any out-of-squares of up to 4mm per side.
- ANTI-WIND SIDE RAIL Available as an optional, the Bettio patented anti-wind side rail prevents the mesh from detaching in strong winds.

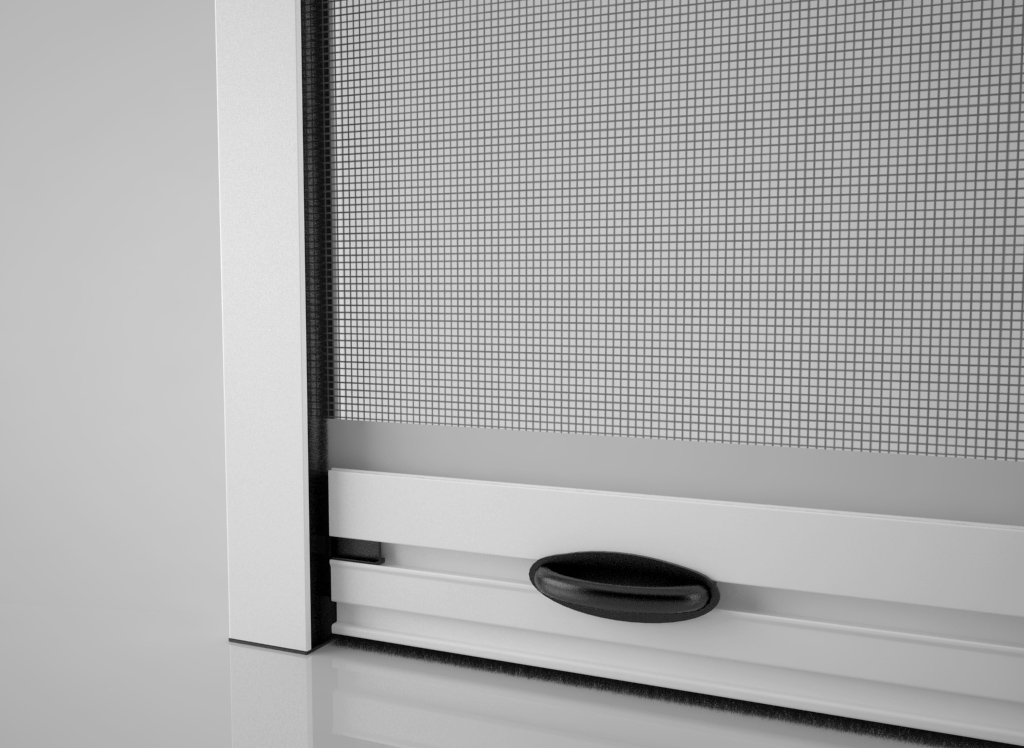

- CLIC-CLAK® The only certified system for opening flyscreens easily and safely by simply touching the handle bar.
- INTERNAL SHOE The plastic component placed inside the side rail allows the handle bar to hook on firmly.
- SQUARED BOX This model’s universal design and small size enable it to easily fit any kind of opening.
- HIGH VISIBILITY MESH A simple and effective solution that minimises visual impact and increases the amount of light entering a room when the screen is closed.
| MOVEMENT | MINIMUM SIZES (BXH) | MAXIMUM SIZES (BXH) |
|---|---|---|
| VERTICAL | 500 x (650 with brake) 700 mm | 1800 x 1580 mm |
| SINGLE DOOR | 700 x 960 (1100 with brake) mm | 1580 x 2450 mm |
| DOUBLE DOOR | 1400 x 960 (1100 with brake) mm | 3160 x 2450 mm |
Ral 9010 Matt 34
Ral 9010 Gloss 4
Ral 9016 Matt 31
Ral 9016 Gloss 11
Ral 1013 Matt 37
Ral 1013 Gloss 7
Ral 9001 Matt 87
Ral 9001 Gloss 33
Brushed Silver 28
Silver Painted 55
Ral 7001 Matt 90
Ral 7016 Matt 95
Ral 8014 Matt 35
Grigio Michelangelo 14
Ral 9005 Matt 36
Bronze Painted 66
Testa di Moro 2001 Matt 9
Ral 8017 Matt 38
Marrone Michelangelo 15
Elox 2000 Matt 3
Ral 6005 Matt 40
Verde Michelangelo 16
Iroko 57
Douglas 58
Pino 59
Renolit Light 88
Ciliegio 20
Renolit Dark 89
Rovere 22
Noce 60
Acacia 21
Black accessories.
Mini 2 battenti.jpg
Mini 1 battente.jpg
Mini zoccolo interno.jpg
Mini Clic Clak.jpg
Mini Testata Mobile.jpg
Mini – Disegni dwg
(178 kB)
