Estetika Incasso Motorizzata

50mm Bug-proof built-in spring motorised

ESTETIKA MOTORIZZATA INCASSO represents a new concept of motorized mosquito net: no connection, no wiring and no predisposition. The rechargeable battery motor allows you to enjoy the convenience of a motorized mosquito net wherever you want. And we thought about the charging phase making it very agile with two solutions:
a) Connect the included magnetic charging cable to the guide to the power outlet
b) Connect the included magnetic charging cable to the guide and to a power bank (recommended minimum power 10000 mAh).
Profiles and plastics have been designed to offer a barrier against annoying bedbugs; while the system Anima21  ensures a wind tightness of the highest level. The motor and the connector for charging are installed on the right side (internal view), but you can request them on the left when ordering

MOVEMENT:

Vertical sliding;

INSTALLATION:

Built-in;

COMMAND:

Motorized;

TOTAL DIMENSIONS:

50 mm

NET FINISH:

Mesh without pvc strip and pins;

AJUSTEMENTS:

Height adjustment: +10mm
Width adjustment: -4/+10mm without double tape; +14mm with double tape

OPENING:

Windows;

CLOSING:

Free falling;

  1. Upper brush
  2. Plate

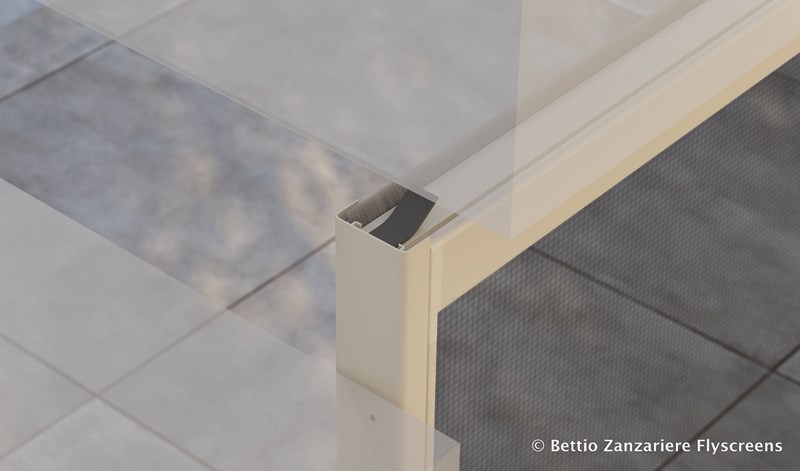

  3. Upper spring
  4. Box holder hook
  5. Side rail
  6. Housing
  7. Double side adhesive tape
  8. New generation Clic-Clak® slider
  9. Pushing group
  10. Handle bar with adapter and vanishing brush
  11. New generation Clic-Clak® shoe
  12. Adjustable pulling cord

Standard production Grey/Black mesh

Box 50
Minimum dimensions 560 x 400 mm
Maximum dimensions   2700 x 2700 mm

Black Velum Mesh

Box 50
Minimum dimensions 560 x 400 mm
Maximum dimensions   2700 x 1800 mm



Ral 9010 Gloss*
Ral 9010 Matt
Ral 1013 Gloss*
Ral 1013 Matt
Ral 9001 Gloss*
Ral 9001 Matt
Silver Oxidized
Silver Painted*
Ral 7001 Matt
Ral 7016 Matt
Grigio Michelangelo
Ral 9005 Matt
Bronze Painted
Testa di Moro 2001 Matt
Ral 8017 Matt
Marrone Michelangelo
Elox 2000 Matt
Ral 6005 Matt
Verde Michelangelo
Iroko
Douglas
Pino
Renolit Light
Ciliegio
Renolit Dark
Rovere
Noce
Acacia

Grey accessories. If you opt for Bronze, 9001, 9010 or 1013, some of the parts will be supplied in matching colour. The colour of the accessories in special shades is at the discretion of the Company.

* Standard colour unless otherwise mentioned on the order form.

Antibug technology

Profiles and plastics have been designed to offer an effective barrier against the annoying bugs, insects that easily enter inside homes. Estetika has been designed to eliminate all possible entry routes, leaving intruders outside.

Fully retractable retractable brush

Patented new generation Clic-clak® opening and closing mechanism with adapter profile and brush that disappear inside the handle bar. On widths over 2 meters, a slight flexion of the adapter may occur.

Quick installation without screws

Installation without screws thanks to the combination of the supplied push group and double-sided adhesive. With this system it is possible the adjustment of out of square for up to 10mm.

Different types of possible installation.

Installation without screws (between window and shutter /roller) or by only 2 screws per side.

Self-adjusting telescopic guides

Thanks to its telescopic profiles and the standard upper brush, Estetika adapts to even the most irregular compartments without the addition of shims, silicone or gaskets of any kind. The guides can be easily self-adjusted during installation by simply lowering and sliding the handle bar to full height.

The telescopic guide

High technical and aesthetic performance of the product thanks to the horizontal movement of the guides that make it possible to overcome the frequent problems of out-of-square installation compartments, and therefore obtain a perfect finish. In addition, the guides can be self-adjusted by simply lowering the handle bar during installation.

Fiberglass mesh with the same characteristics as the standard grey mesh.
Give elegance to the mosquito net itself
Evolution of the classic mesh, more resistant and performing. Protects from damage caused by sunlight thanks to a slight shade effect.
MANAGES UP TO 30 MOSQUITO NETS operated in group or individually even remotely.

Download the app for home automation (Brel Home): manages the opening and closing hours of all the associated mosquito nets, allows you to adjust the end of the ride, compatible with Alexa and Google Home.

We created two special side rails (80 and 90mm wide) consisting of two sections that allow us to easily combine the flyscreen system and the roller shutter system: the first section is fitted with brushes and a special conveyor for roller shutter sliding (14x55 mm profile) and the second one allows the insertion of 50 mm built-in flyscreen systems, such as Delta, Sigma, Omega, India, Africa, Miniscenica®Incasso. This special rail is fitted with a housing that allows easy installation of all our built-in flyscreens that do not exceed 50 mm, including lateral flyscreens that require anchoring systems at the top. Models India and Africa use lower adjusting profile for installation.  An integrated system that enriches any house with its high quality finish.
We try to meet all the requirements with our built-in system. This aluminium bracket connects the door/window frame and the blind, leaving enough space for the installation of our 50 mm built-in systems. This way we can assemble the whole system during manufacture and then simply mount the assembly and the window/door frame, the flyscreen and the blind, gaining significant time. Available in packs of 30 pieces.  Dimensions: 131 x 64 mm.
It is possible to cover all the predispositions for built-in mosquito nets 50mm, waiting for installation. It hooks to the compensator Delta. The Infill Profile is available in RAL 9010 matt and Dark Brown 2001 matt colors: it can be purchased by linear meter already cut to size or in packs of 10 bars 4900mm long
